Pellet boiler

Solid fuel boilers

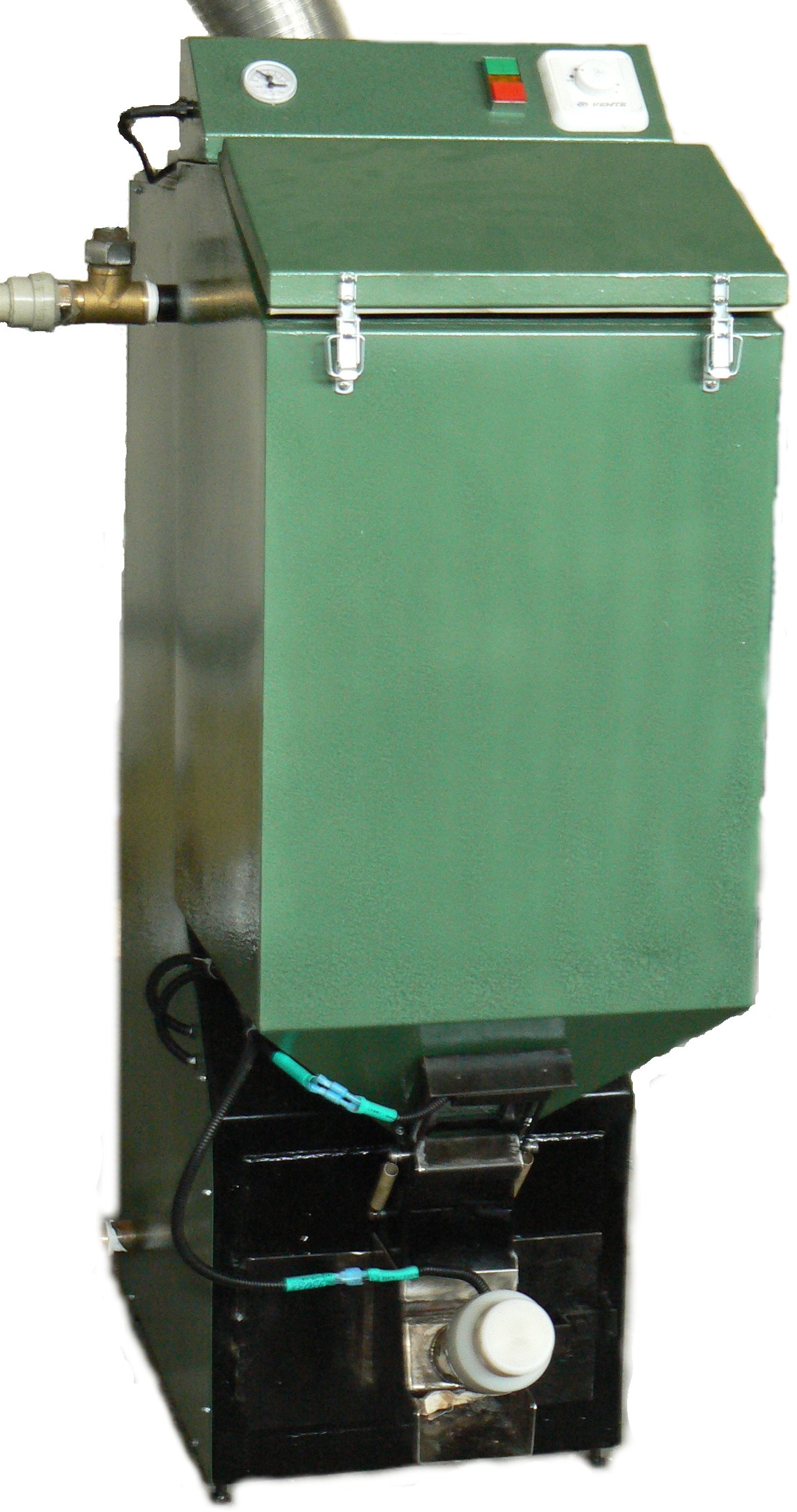

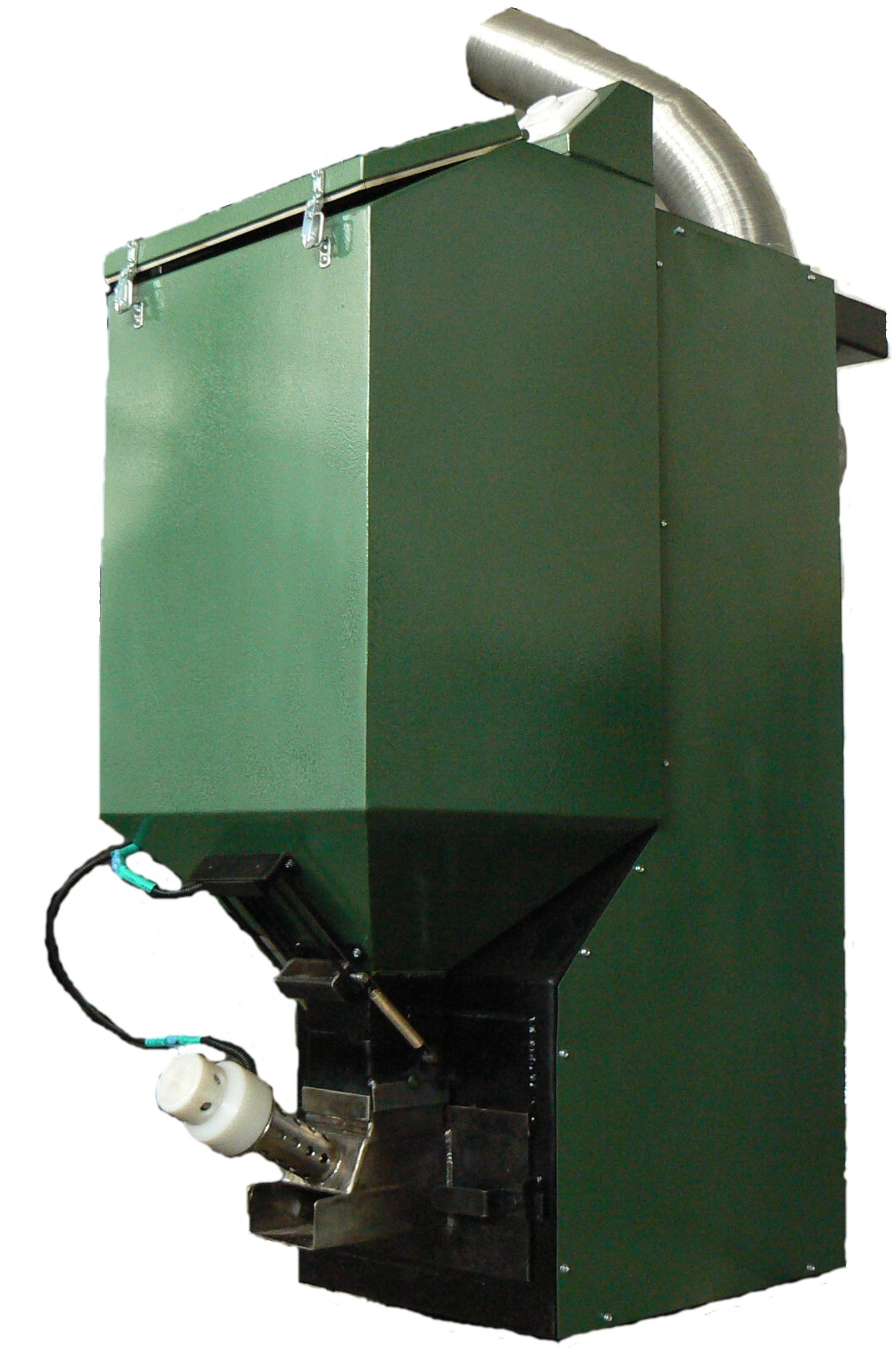

To date, fully tested and tested the pellet boiler, "TIS energy", with a capacity of 20 kW, namely:







#

Key

Value

1

Maximum net power, kW:

20

2

Nominal efficiency,%

88

3

Type of fuel

Light pellet with a diameter of 8 mm with a pellet length of up to 30 mm

4

The stock of pellets, kg (l)

90(150)

5

Pallet consumption at maximum power, kg / kW * h

0,2

6

Time of continuous operation of the boiler at full load, hour.

18

7

Consumed electric power (without ignition), W

80

8

Volume of water jacket, l

80

9

Diameter of the branch pipe of the chimney, mm

120

10

Diameter of water connections

1”

11

Permissible coolant pressure, mPa:

0,3

12

Max. Outgoing water temperature, ˚С

85

13

Heat carrier

Antifreeze or treated water

14

Dimensions, LxWxH, mm:

420х950х1450

15

Loading height, mm

1200

16

Weight, kg

140

17

Power supply voltage, V

220

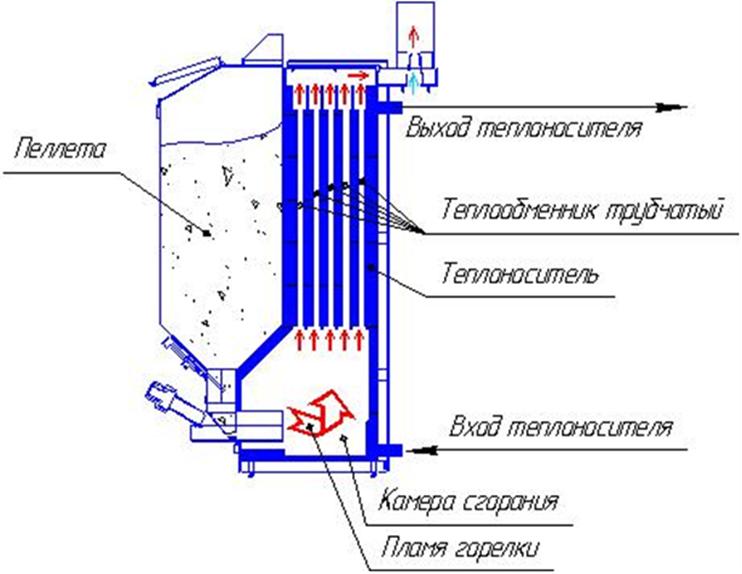

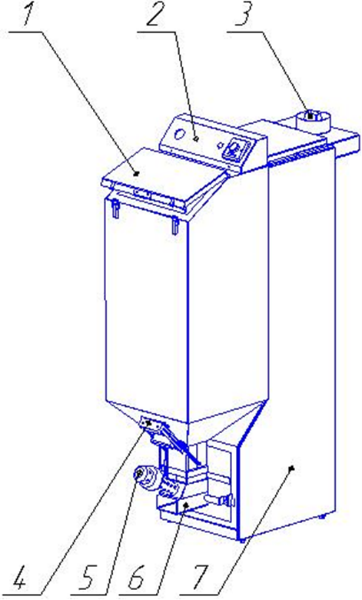

The boiler consists of the following parts:

1 - Feed hopper for pellets with a lid.
2 - Control unit.
3 - Exhaust fan with an ejection device.
4 - Shear cut-off.
5 - Ignition device.
6 - Pellet burner
7 - Enclosure with heat exchanger.



Advantages of pellet boilers

Economic benefits are not the only advantage of using biofuel. There are many reasons for choosing pellets.

- Ecological cleanliness. Caring for the environment is what everyone should do today. When burning pellets there is practically no smoke, the minimum amount of harmful compounds is released into the atmosphere. In flue gases there is no carbon dioxide, and the sulfur content does not exceed 0.3%. Ecological damage is absent.

- Practically non-waste work. The only waste resulting from the operation of a pellet boiler or furnace is ash. Its volume is 0.5-1% (in rare cases - 3%) of the total.

- High efficiency. This indicator for different models is 85-95%.
-
Easy maintenance of equipment. To use a pellet boiler, you do not need to have special skills. The equipment does not require any attention to itself, than fuel loading and cleaning of the furnace once a month or even once a season. In contrast to boilers on firewood, does not require the procurement of firewood, the cost of physical effort and time for harvesting.

- Safety of pellet boilers. Since the fuel pellets are absolutely fire-safe and explosion-proof, there is no risk to life and health when they are burned.

- Availability. In Ukraine, a huge number of industries, as a result of which remain the waste used for the production of pellets, such fuel is always available for sale in the required quantities. And since the cost of production is low, the final product is also quite cheap. The price for pellets and firewood in the market is the same, but efficiency, saving in energy and time is not comparable!



Our advantages:

- Availability in the warehouse;

- The best price for pellet boilers in Ukraine;

- Guarantee.
